Fabricated by our specialized solid surface facility, these 3D cylindrical wall modules combine sculptural design with practical display and storage. Made from thermoformed, non-porous pure acrylic, they provide a seamless, durable surface solution for distinctive commercial interiors.
Product Origin :
Foshan, Guangdong, ChinaColor :
White, Black, or Custom Pantone / RAL colorsMain Material :
Acrylic Solid Surface (~60% ATH + 40% PMMA)Shape :
Circular / Cylindrical, Oval, or Custom Irregular Shapes per CADOEM / ODM Service :
Available (Free 3D/CAD drawing design support)Thermoformed Pure Acrylic Solid Surface 3D Circular Wall Art

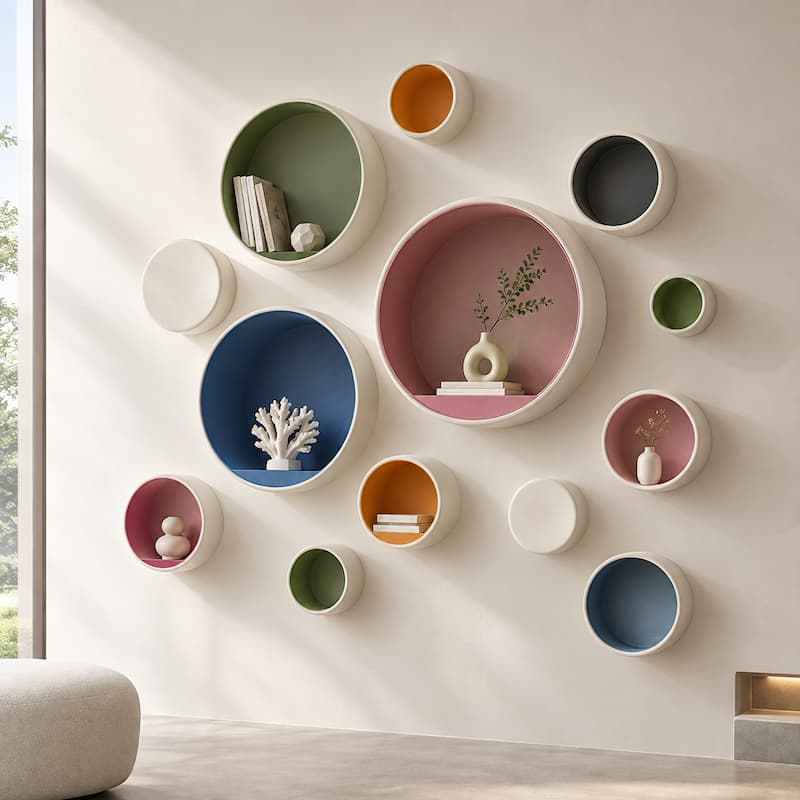

Designed as modular 3D wall elements, these cylindrical forms can be arranged in different sizes, depths, colors, and configurations to create a distinctive architectural feature wall. Open niches provide space for displaying books, artwork, plants, and decorative objects, allowing the installation to combine visual impact with practical function.
Each module is thermoformed from non-porous pure acrylic and finished with precision CNC machining for consistent dimensions and smooth contours. Seamless fabrication techniques create clean transitions between surfaces, while the material's resistance to moisture and everyday staining makes the installation suitable for demanding commercial environments.
Available in custom dimensions, colors, and configurations, these wall installations can be coordinated with other solid surface elements throughout a space. They are suitable for boutique retail, hospitality lounges, showrooms, offices, and other modern commercial interiors.
Request Custom Shop Drawings & Samples
Material Formulation: High-grade Pure Acrylic Solid Surface (~60% Aluminum Trihydrate/ATH + ~40% Polymethyl Methacrylate/PMMA resin), engineered for thermoforming flexibility, color stability, and durable performance.
Thermoforming: Heated to approximately 160°C and precision-formed into cylindrical or oval curves to achieve the desired 3D shapes and dimensions.
Seamless Joining & Finishing: Color-matched acrylic adhesive is used to create smooth, visually seamless joints, maintaining the non-porous surface continuity of the solid surface material.

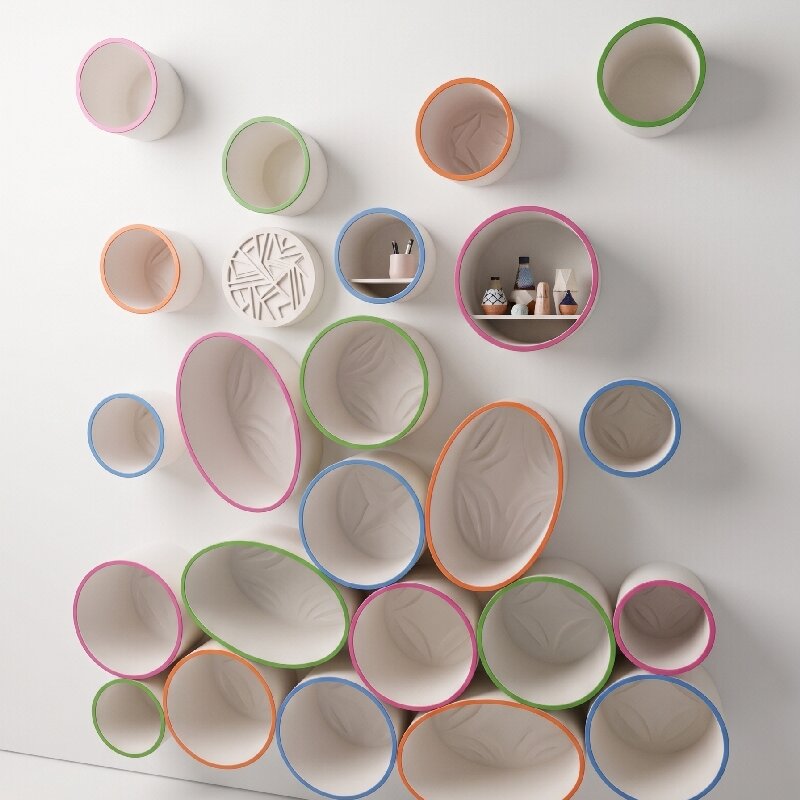

Unlike rigid quartz or porcelain, pure acrylic solid surface allows large-radius deep thermoforming. We produce smooth round and oval tubes with invisible seams and contrasting inlaid colored rims.
Manufactured to standard commercial countertop specs. The non-porous structure completely resists mold, bacteria, dust accumulation, and spills—ideal for cafes, healthcare facilities, and humid washrooms.
The back panels of each display cylinder can be precision-milled with bespoke 3D geometric textures, parametric wave grooves, or company logos, adding tactile dimension to the vertical wall system.
Any accidental scratches, transport scuffs, or surface wear can be easily buffed out on-site using standard scotch-brite pads and sandpaper, restoring the original smooth velvet-matte finish effortlessly.
| Parameter | Factory Standard Specification / Value |
|---|---|
| Product Category | Custom 3D Circular Solid Surface Wall Art / Architectural Display Niches |
| Main Material Formulation |
35% – 40% Pure Acrylic Resin (Polymethyl Methacrylate / PMMA, 75% MMA content); 59% – 64% High-Purity Aluminum Trihydrate (ATH) Mineral Filler; ~1% Performance additives (UV stabilizers, coupling agents) and color pigments. |
| Shape & Profile Geometry | Circular / Cylindrical, Oval / Elliptical, and Custom Irregular Shapes per CAD shop drawings |
| Standard Diameter / Size | Ø 200 mm, Ø 300 mm, Ø 450 mm, Ø 600 mm, Ø 800 mm (Custom modular sizing available) |
| Depth / Wall Projection | 150 mm – 400 mm (Customizable based on structural framing and display needs) |
| Fabrication Processing | Thermal heat bending (Thermoforming), 5-axis CNC routing, seamless chemical jointing, matte edge rounding |
| Safety & Hygiene | Non-Porous, Anti-Bacterial, Low-VOC certified |
| Routine Maintenance | Wipe with warm water or neutral detergent; minor scuffs renewable via light abrasive pads on-site |
We provide tailored solid surface fabrication for architects, interior designers, and contractors, with flexible options for dimensions, shapes, colors, and configurations. OEM and ODM services are available for specific project requirements.
Full freedom in cylindrical diameter, depth, angle cuts, and oval elongation matching architectural elevations and wall cavities.
Combine two or more colors across the outer rim, inner surface, or individual modules. RAL and Pantone color matching is available for coordinated branding and interior design themes.
Precision carved floral, ribbed, wave, or geometric motifs carved directly onto the inner base of the solid surface niche.
Package decorative wall elements with matching reception desks, service counters, and bathroom vanities under one consolidated project order.
We offer custom batch formulation to match physical stone samples, RAL color cards, or architectural specifications. Only a selection of popular series is shown—please click here for complete 100+ color catalogs and physical sample boxes.
From decorative feature walls to functional retail display units, see how our thermoformed solid surface elements integrate across various commercial environments.

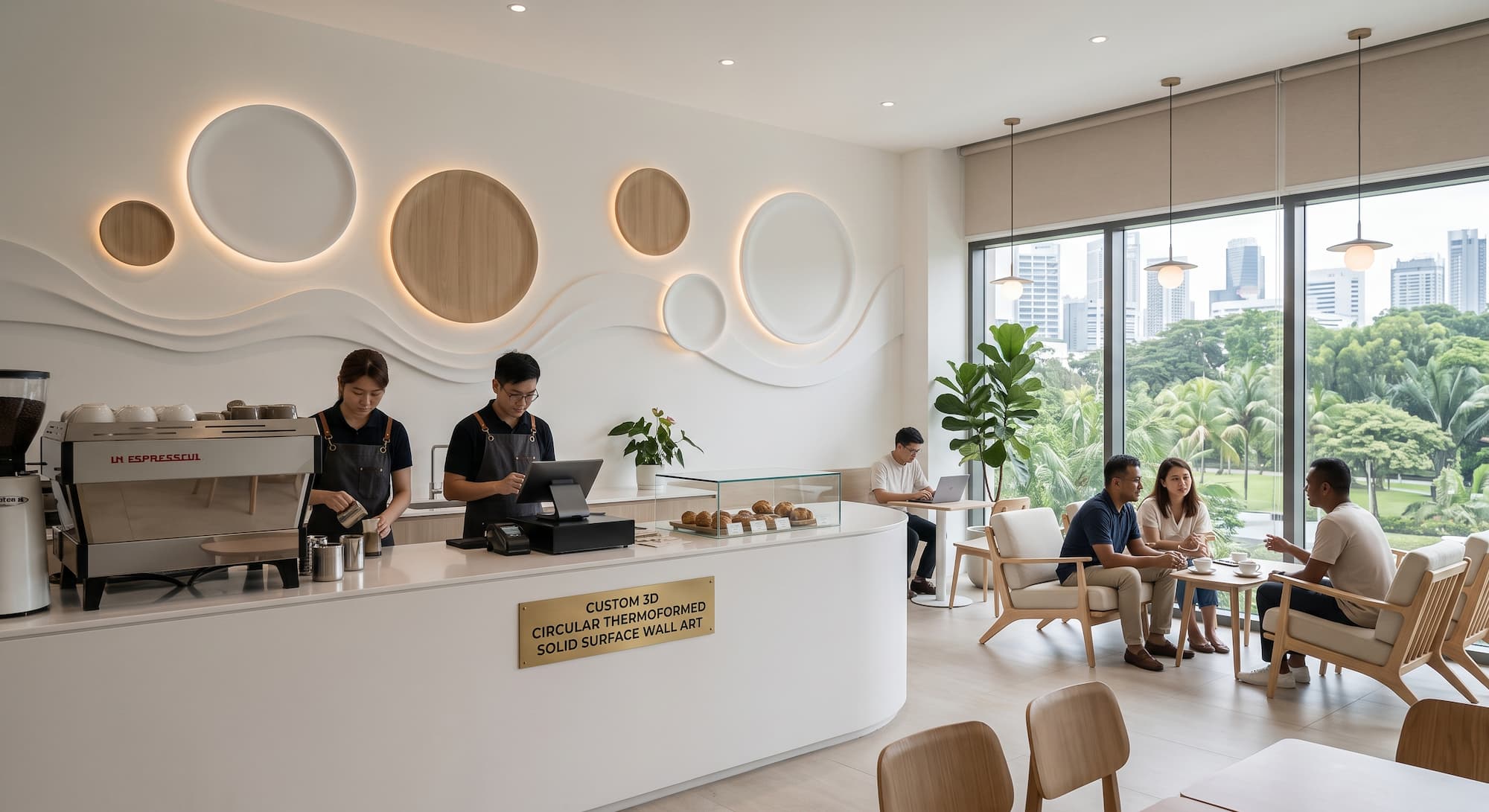

Statement backdrop installations behind coffee bars and lounge areas, pairing seamlessly with stain-proof acrylic bar countertops.

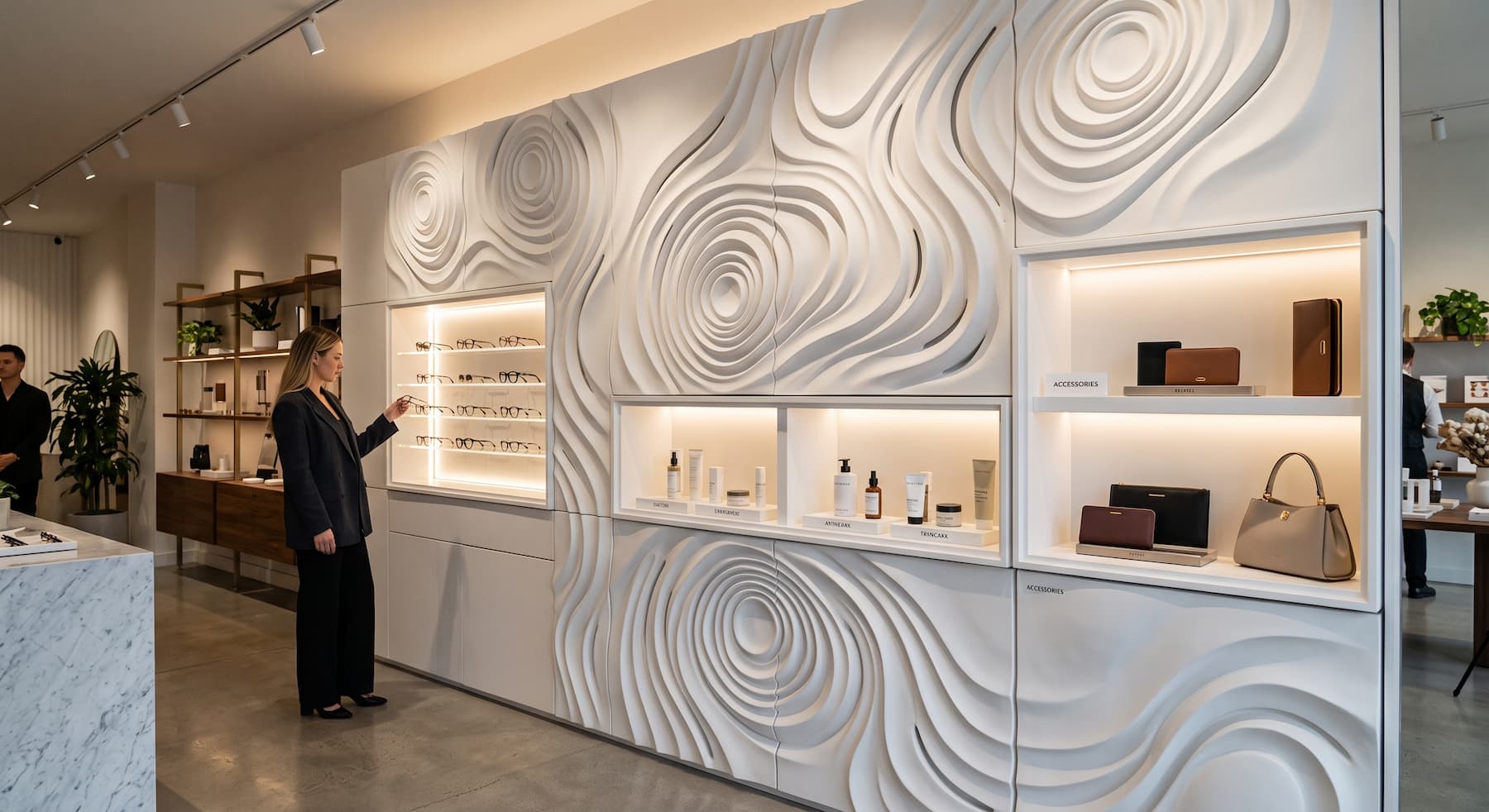

High-end modular display compartments for footwear, eyewear, skincare, or luxury accessories with integrated interior shadow-line accents.

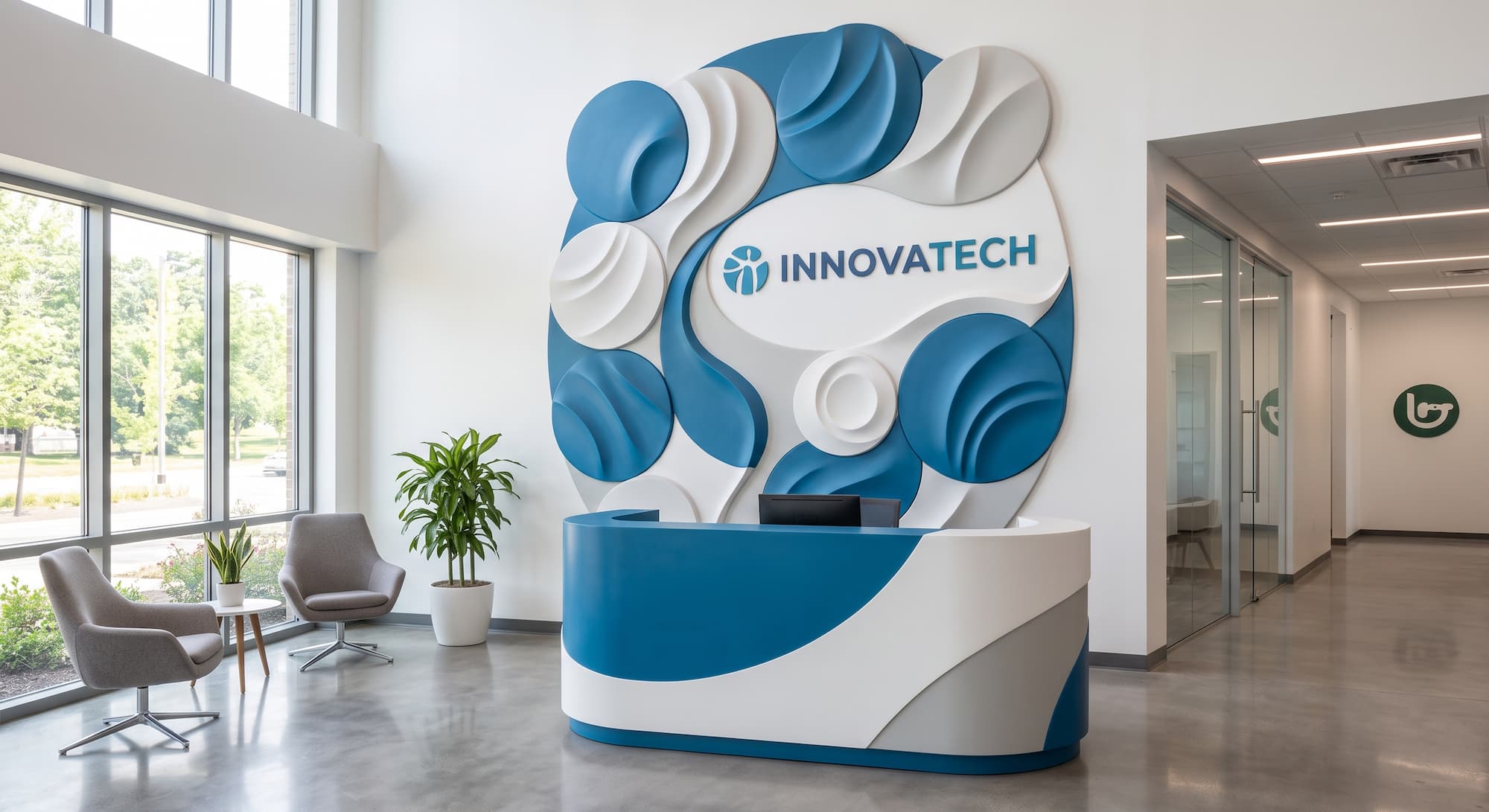

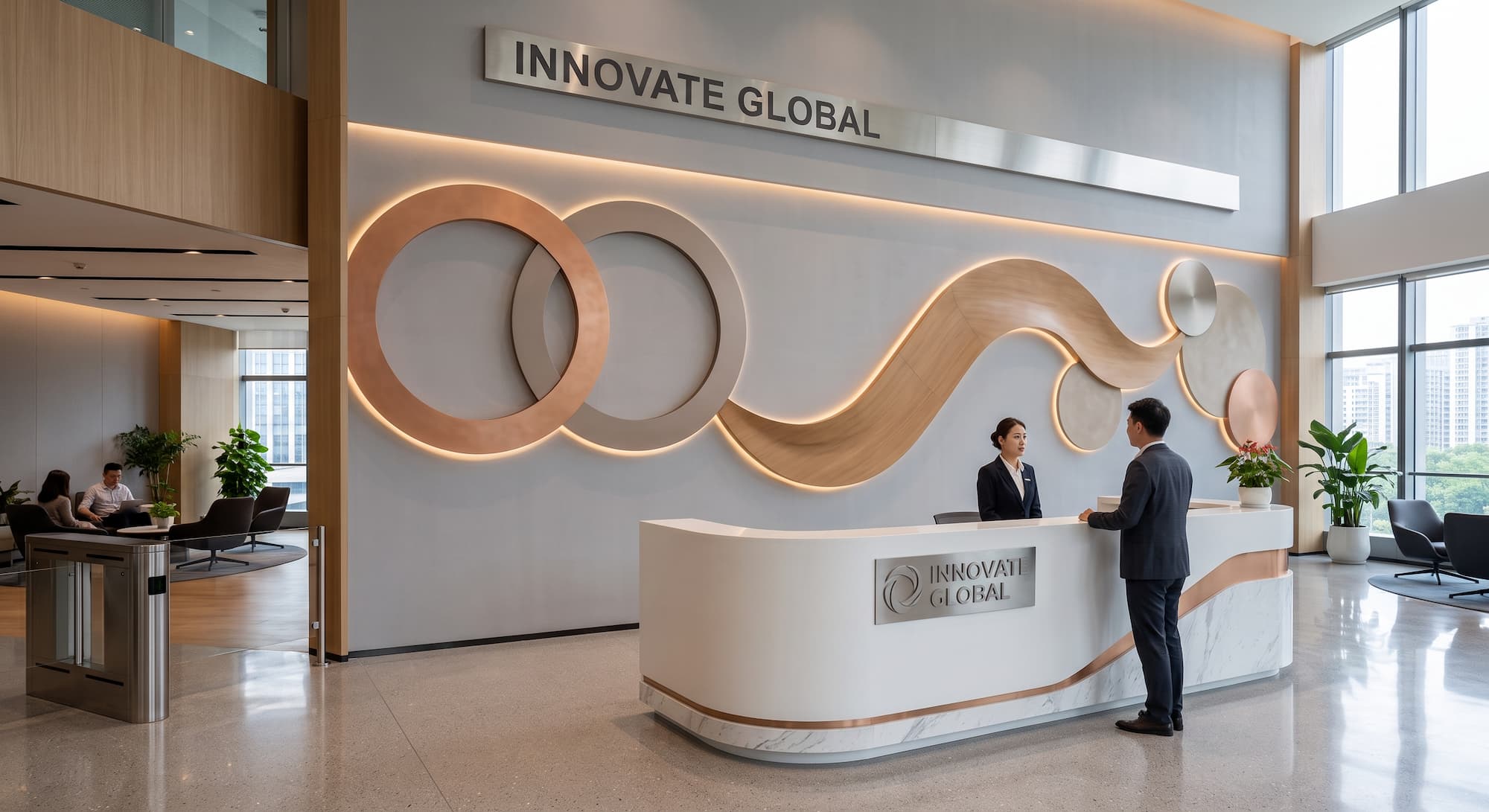

Three-dimensional corporate feature walls engineered to reflect branding colors, matching the reception desk's solid surface finish.
Pure acrylic solid surface can be thermoformed into deep curves and cylindrical shapes, making it suitable for creating smooth, continuous 3D wall features. Its non-porous surface and seamless fabrication also allow clean, uniform finishes across complex forms.
Yes. When the wall art and other solid surface elements are fabricated from the same material system, colors and surface finishes can be coordinated across the project. Custom color matching is also available for specific design requirements.
Yes. The non-porous solid surface is resistant to everyday stains and moisture, making the wall installation easy to clean and maintain. Its smooth, seamless construction also minimizes areas where dirt and residue can accumulate.
Yes. Custom dimensions, depths, shapes, configurations, and accent colors are available. RAL or Pantone color matching can also be provided for coordinated branding or interior design schemes.
Submit your interior elevation drawings, dimension lists, or combined countertop schedules. Our technical engineering team provides shop drawings, material verification, and wholesale project estimates within 24 hours.
